Two Wheel Trucks - HM44, HM52, HM53, HS44
Cap. 500 to 1,400 lbs.

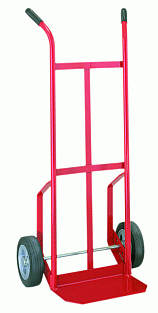

HM52-B
Shown with 8" Ace-Tuf® Rubber-tired wheels.

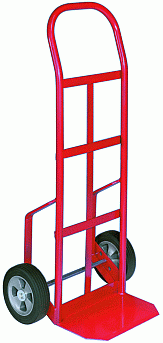

HM44-E

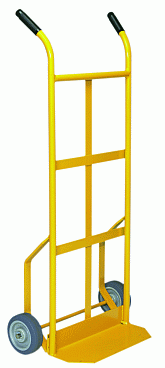

HM44-K

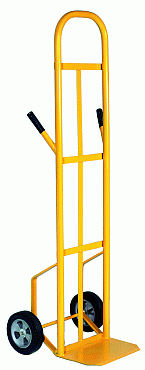

HM53-K

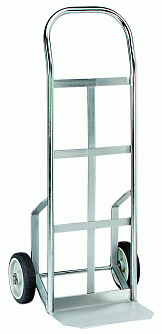

HM44-S


Two Wheel Hand Trucks

Designed for proper balance and rigidly welded of high alloy steel tubing, Lite-N-Tuf® all-welded steel hand trucks embody Hamilton quality at a competitive price. Steel frames of 1 11/16" O.D. high yield tubing, red enamel finish (yellow on HM44-K and HM53-K), and vinyl handle grips are standard features on these models. HM52-B and HM44-E hand trucks feature solid bar steel curb skids, beveled nose edges, strong "back-up" nose design, and extra large stair skids. The non-rotatable "D" axle (see detail) can be moved from one position to another without tools to accommodate 6", 8" or 10" diameter wheels. Choice of wheels listed below. HM44-K is the widest model available and is furnished standard with 6" x 2" Versa-Tech® wheels. HM53-K features 8" x 2.50 Ace-Tuf® ball bearing wheels, and a 65" tall frame ideal for carrying bread racks or other bulky high loads.
Newly added model HM44-S is all stainless steel, including hardware. Wheels have Delrin® bearings.
SPECIFICATIONS (inches)
Model No. HM44-EHM44-KHM44-SHM52-BHM53-K
Height 4648464665
Frame Width 1518 1/4151515
Overall Width 20 5/82420 5/82121
Nose Depth 86 3/4889
Capacity Lbs. 500500500500500
Weight Lbs. 3035303540
Non-Rotatable “D” Axle in HM52-B and HM44-E. Adjustable to 3 wheel diameters. Zinc-plated finish resists rust and corrosion.
WHEEL CHOICES
Puncture-proof cushion rubber tire on propylene core.Soft, non-marking gray rubber (65A) on polypropylene core.

To order or see more detail, click on suffix corresponding to desired wheel type & deck size.
HM44/52/53 Selection Table
Dimensions in inches
Model
Number		Ace-Tuf®PneumaticSemi-PneumaticVersa-Tech®
8 x 2.5010 x 2.7510 x 4.10-46 x 2.006 x 28 x 2
HM44-EHM44-E-8ATHM44-E-10ATHM44-E-10PRHM44-E-6SPHM44-E-6TEHM44-E-8TE
HM44-KXXXXHM44-KX
HM52-BHM52-B-8ATHM52-B-10ATHM52-B-10PRHM52-B-6SPHM52-B-6TEHM52-B-8TE
HM53-KHM53-K-8ATXHM53-K-10PRXXX
