"Ultra-Lite" Aluminum Hand Trucks - HA71/72/78/79
Cap. to 500 lbs.

HA71
Frame reinforced at top for extra strength.

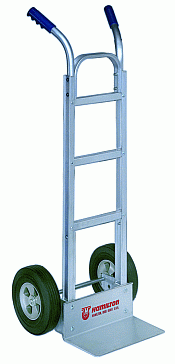

HA72
Double handles for heavy loads.

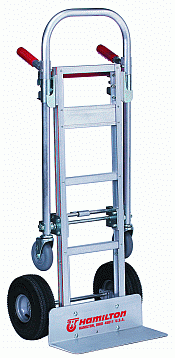

HA78
Convertible

HA79
Convertible

Stocked for PRONTO® shipment—via UPS or RPS.
Lightweight design for easier handling. Helps reduce fatigue on delivery truck drivers. Aluminum frame made of extruded channel side rails with tubular cross supports for increased durability. Extruded aluminum nose plate/axle bracket has tapered leading edge to assist loading, interlocks with frame and axle for maximum strength.

Newly added convertible models HA78 and HA79 can be used as either hand trucks or platform trucks. The conversion latch system is engineered for simplicity so there are fewer moving parts resulting in more reliability and longer life. Only available with 10" pneumatic tires.

HA78 HA79
WHEEL SELECTION
Suffix Size Type
(Ball Bearings) 		Replacement
Wheel No.
8 x 2.50
10 x 2.75 		Ace-Tuf® W-8-OAT-5/8
W-10-OAT-5/8
4.10/3.50-4 Pneumatic W-9-PR-5/8
8 x 1 5/8 Vulcalite™
Rubber-Tired 		W-815-AR-5/8

OPTIONAL ACCESSORIES

STAIR CLIMBERS. With built-in wear strip to increase strength and mobility for going up and down stairs or curbs. To order add the suffix "SC-HA".

FOLDING BAGGAGE RACK. Sturdy ribbed plate baggage rack 24" long, folds up when not in use. To order add suffix "F20-HA".


To order or see more detail, click on suffix corresponding to desired wheel type.

= available for 24 Hour PRONTO® shipment
View
Printer Friendly
PDF Version
Hand Truck Selection Table
Dimensions in inches
Model
No.		Frame
Height		Frame
Width		Nose
Plate		Wheel
Dia.		SELECTION SUFFIXAxleLoad
Capacity Lbs.		Approx.
Weight Lbs.		Height
as
Platform Truck		Platform
Bed
Length		Platform
Height
From Floor
HA71-481214"w x 7 1/2"d8" or 10"8AR - 8AT - 10AT - 10PR5/850020XXX
HA72-481214"w x 7 1/2"d8" or 10"8AR - 8AT - 10AT - 10PR5/850020XXX
HA78-521218"w x 7 1/2"d10"10PR5/8500*424138 1/411"
HA79-61.501214"w x 7 1/2"d10"10PR5/8500*474651 1/211"
*1,000 lbs as platform truck
