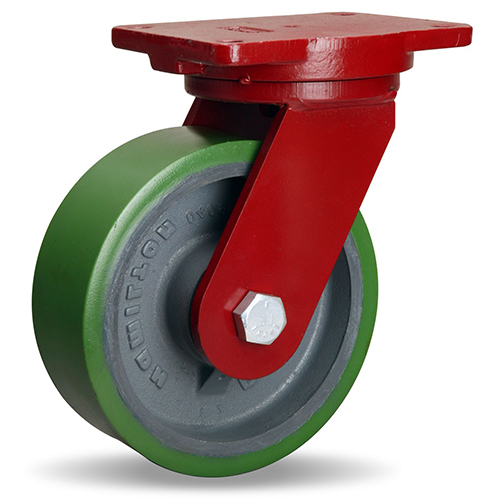

Series EHD

Extra Heavy Duty Casters

Capacity Range: 1600 – 5000 lbs.

Overview

Hamilton's popular Extra Heavy Duty Casters are widely recognized for their superior performance, wide selection, and reliable service.

The EHD's extra thick hot forgings and guaranteed-for-life integrally forged kingpin combine to defy comparison. Yet high volume enables us to price these superior products among the lowest priced casters in their class.

Quality Features

Brakes

Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available.Select desired caster from selection table to see brake details.
Swivel Lock

4 Position (★-4SL) convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.
Toe Guard

Enhance workplace safety by protecting feet from injury while supporting two brake styles and optional floor brushes. Easy to install and offers 8 different sizes for 2” and 3” tread widths.
Sealed Swivel Assembly

(-SS) - prolongs caster life in harsh environments.
Wheel Bearing Seals

(-DS) - prolong wheel life in harsh environments.
Dual Wheel Models

minimize overall height & maximize capacity, see EHD2 Series
Custom Engineering

Hamilton engineers will custom design any caster to meet customer requirements. See Custom Gallery

Wheel Choices

DuraGlide

New 1" thick 95A polyurethane best for higher speeds or outdoor environments.

Duralast XC®

A harder (70D) liquid cast polyurethane with load capacity 30% higher than Duralast®.

Duralast®

Hamilton's classic liquid cast 95A polyurethane tread bonded to heavy duty iron center.

Ergo-Glide XT

1" thick quiet rolling & high cushion 85A polyurethane bonded to heavy duty iron center.

Forged Steel

Highest capacity drop forged steel tensile strength in the 75,000 psi range.

Metal

Heavy duty cast iron with extra thick hubs, CNC-machined in our USA factory.

Moldon Rubber

1500 psi 70A Rubber vulcanized to heavy dutycast iron center.

Nylast®

Solid high capacity cast nylon resistant to moisture & many chemicals.

Plastex

Fiber-reinforced phenolic resin wheel.

Superlast®

1" thick 95A polyurethane tread chemically bonded to forged steel center.

UltraGlide® 24-7

New 24/7 | AGV multi-wheel superstar - 95A high speed poly on aluminum core.

UltraGlide® Ergo

New ergonomic and quiet-riding superstar - multi-wheel 85A poly on aluminum core.

UltraGlide® XC

New multi-wheel for high load capacity, 70D poly tread on aluminum core.

Accessories

Brakes

Keep safety manager happy with all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking. Other styles available.Select desired caster from selection table to see brake details.
Swivel Lock

4 Position (★-4SL) convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.
Toe Guard

Enhance workplace safety by protecting feet from injury while supporting two brake styles and optional floor brushes. Easy to install and offers 8 different sizes for 2” and 3” tread widths.
Sealed Swivel Assembly

(-SS) - prolongs caster life in harsh environments.
Dual Wheel Models

minimize overall height & maximize capacity, see EHD2 Series
Custom Engineering

Hamilton engineers will custom design any caster to meet customer requirements. See Custom Gallery

Hamilton HPI™ Technology

The Extra Heavy Duty Series features Hamilton’s Precision Integrated HPI™ Swivel Technology. The new technology outperforms conventional CNC-machined ball raceways, kingpinless, and unit load bearing swivel constructions.

Hamilton Durability

The Extra Heavy Duty Series (EHD) is backed by Hamilton’s Three Year Product Warranty. Refer to selection table for qualifying wheels.

Manufactured Lean in the USA
