Part Series 52HK | WHK | WHS

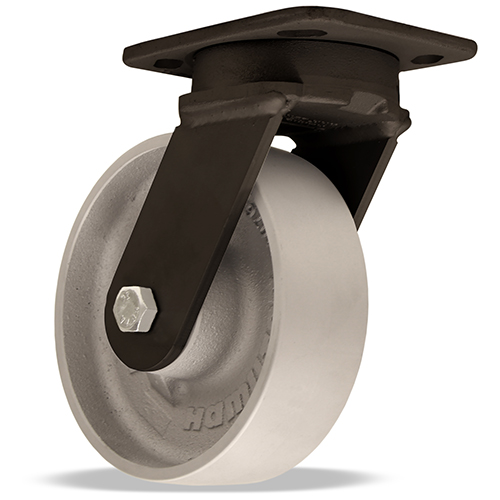

Inferno™ Series Heavy Duty Casters

Capacity Range: 400 – 1600 lbs. Temperature Range: -22 – 750° F

Overview

For heavy duty high heat industrial applications, look no further than Hamilton’s new heavy duty Inferno Series. All casters in this series feature durable kingpinless construction, precision cnc-machined and hardened raceways, and high heat lubricant rated to 750° F. This heavy duty high heat series offers a good, better, best selection.

Quality Features

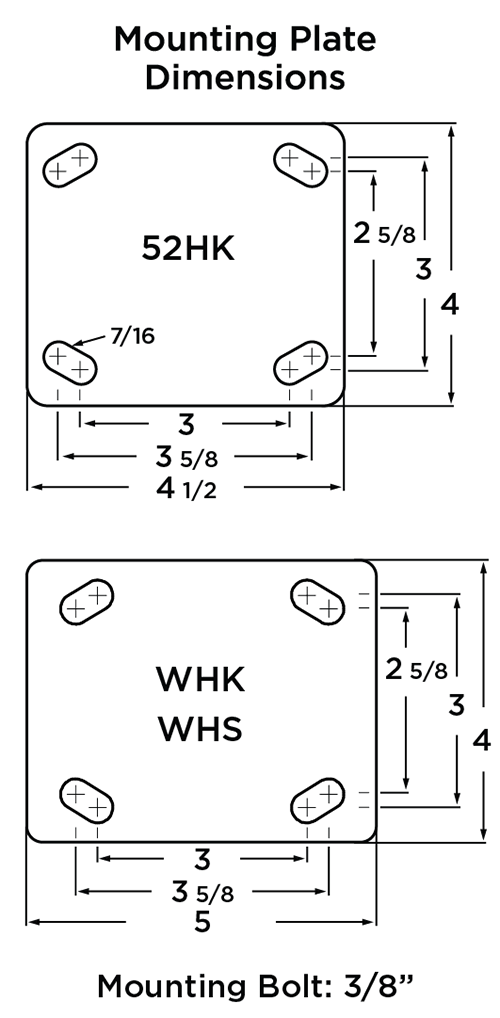

Swivel Construction

52HK - kingpinless mounting plate and inner raceway is a weldment constructed from 1045 steel. 1/4" x 2" precision laser cut steel legs welded inside and outside.
WHK - kingpinless forged steel top plate and fork base; 1/4" x 2" precision laser cut steel legs welded inside and outside to forged steel horn base.
WHS - forged stainless steel mounting plate; 1/4" x 2" precision laser cut stainless steel legs robotically welded inside and outside to forged stainless steel horn base.
Load Bearing

52HK - the raceway is CNC machined for precision swiveling to a finished size of 2 3/8” diameter then induction hardened to 45-50 Rockwell C for long wear with 3/8” hardened and polished steel balls.
WHK - 2 9/16" diameter hardened and CNC-machined raceway with 3/8" steel balls.
WHS - machined raceway with 3/8" diameter stainless steel balls.
Secondary Load Bearing

WHS - Machined raceway with 5/16" dia. stainless steel balls.
Axle

1/2" diameter stainless steel bolt with lock nut.
Lubrication

special high heat lubricant rated to 750° F (In swivel assembly) and in wheels.

Wheel Choices

High Heat Stainless Steel

Solid CNC-Machined Stainless Steel.

Inferno Forged Stl

Indestructible forged steel CNC-machined in our USA factory with special 750°F high heat prec. ball bearings

Inferno Metal

Heavy duty cast iron CNC-machined in our USA factory with special 750°F high heat prec. ball bearings

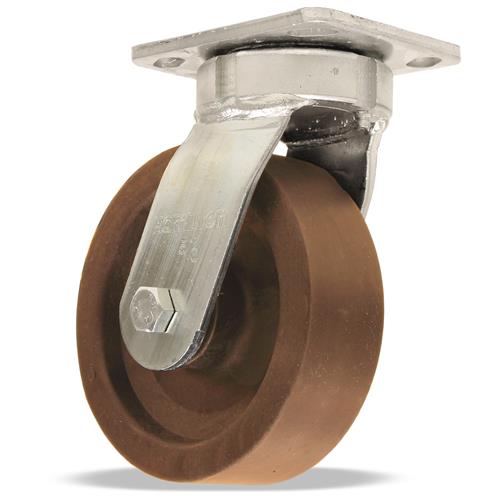

Scorcher™

High heat glass-fiber-reinforced nylon 6/6 rated to 475°F

Ultratherm

High heat elastic rubber on synthetic core rated to 570°F with stainless prec. bearings

Accessories

Brakes

Keep safety manager happy with foot brakes.
WHK & H2HK - all-steel cam-actuated side foot brake (-FB), or heavy duty face contact brake (-ZB) for more positive locking.
WHS - all-stainless steel cam-actuated side foot brake (-SFB), or heavy duty face stainless steel contact brake (-SZB) for more positive locking Select desired caster from selection table to see brake details.
Swivel Lock

WHK & WHS - 4 Position (-4SL) - convert swivel to rigid for straight line steering, robotically welded housing & CNC-milled slots assure long lasting, trouble-free performance.
52HK - field Installable (-4SL) - convert swivel to rigid for straight line steering.
Toe Guard

Toe Guards help protect workers’ feet and can be used for both manual and power applications.

Hamilton Pronto Shipping

At Hamilton we understand that fast delivery is critical. That's why as you browse our website, you'll notice the proliferation of a red star (★). This PRONTO® Symbol identifies one of thousands of PRONTO® models we stock for you in our warehouse (so you don't have to) and pledge to ship either SAME-DAY, if arrived before noon EST, or otherwise next day service - all for no extra charge.
